Easiest way to take out the stud on the crank into the cylinder started by Craig_Polaris
	August 22nd 2009 at 11:12 PM Post #1
	Craig_Polaris Junior Member 147 Posts Group: Members Member Since: November 11th 2008 Location: Derry, New Hampshire, USA Current Sled: 2002 Edge X 800
	So i just got my cylinders back from being replated and brand new wiesco pistons and all new gascets and new SS power valves. Put the pistons in and put the cylinder over them and tightened the bolts in an x pattern rotaing and slowly tightning with a torque wrench. Torquing at 30 foot pounds. And sure enough one of the bleepin studs broke. I dont know if it was a crappy torque wrench or what but its broke. Not the happiest after spending about a grand on it but now i dont know if i should split the case or try to take the broken stud out and put a new one in. 2002 Edge x 800; Recently swallowed a valve so, New wiseco pistons, rings, pins, circlips, renikisil cylinders, and updated lower end bearings. - Slp single Pipe and Can - Vforce3 Reeds - Slp air horn and gutted box - 140/310 Slp primary spring Rating: 0 Quick Edit Edit Topic

	Site Supporter Group: Site Supporters

	August 22nd 2009 at 11:40 PM Post #2
	polaris91 117 racing polaris91 ugh. Updated Tuesday at 8:30 PM 3647 Posts Group: Members Member Since: March 9th 2006 Location: bridgeport, new york, USA Current Sled: 1991 indymod/2005 xcsp600 2008-2009 Miles: 2900 2009-2010 Miles: grass!?
	is the stud sticking out at all? if so just grab it with a pair of vise grips and spin it out 1990 indy trail bored.20over, ported and polished, cluched and geared, chaincase/brakes/jackshaft from 93 xlt, headlight cover, teather, some custom painting, black skid plate, blue running board trim, fox shocks, blue/gray powermadd handguards, 2 in powermadd riser, fly bars/barpad,blue leds(underglow),1 in lug track, teather mount from a 96xcr440,blue guage bulbs, blue c&as, xtra 10 rear, and edge seat and tank. 2005 xcsp 600,chrome windy,stripped decals,3.5 inch rox riser,white powermadd handguards,white c&a ultra 3 skis 6in shapers,camoplast cobra,slp can,fly bars/barpad,xeon headlight bulbs,rsi barhooks,odi grips,light blue clutch spring,slp vents,black headlight cover,billet wheels,rydefx clicker, Rating: 0 Quick Edit Full Edit

	August 22nd 2009 at 11:43 PM  [ Modified August 22nd 2009 at 11:55 PM ] Post #3
	Craig_Polaris Junior Member 147 Posts Group: Members Member Since: November 11th 2008 Location: Derry, New Hampshire, USA Current Sled: 2002 Edge X 800

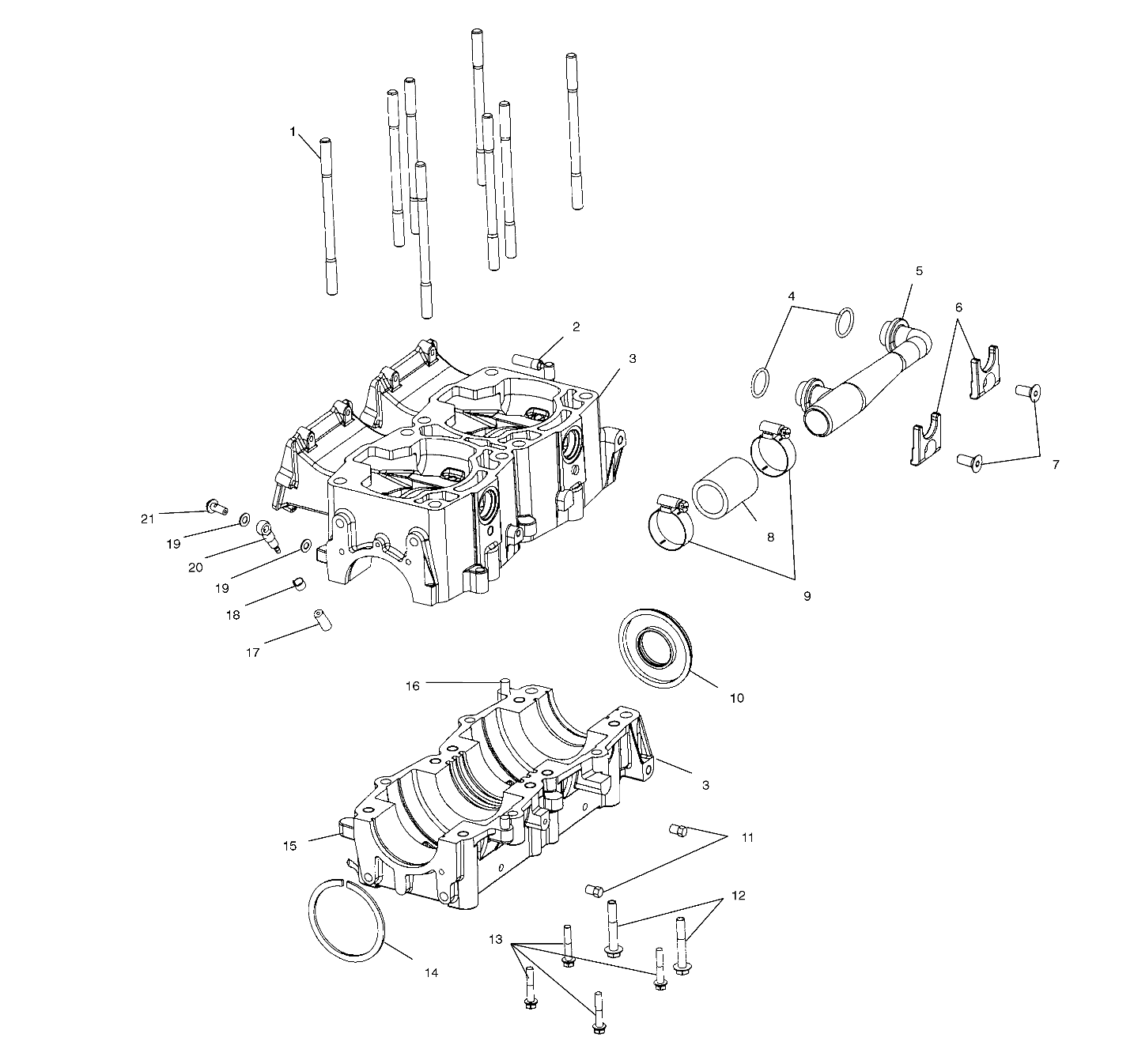

	no its not. Its snapped about a quarter inch down. Im thinking i could use that reverse drill bit in a way but its not a drill bit. Its used for taking out bolts with stripped heads. And will that stud just twist right out? now u can see what i'm talking about 2002 Edge x 800; Recently swallowed a valve so, New wiseco pistons, rings, pins, circlips, renikisil cylinders, and updated lower end bearings. - Slp single Pipe and Can - Vforce3 Reeds - Slp air horn and gutted box - 140/310 Slp primary spring Rating: 0 Quick Edit Full Edit

	August 23rd 2009 at 12:06 AM Post #4
	polaris91 117 racing polaris91 ugh. Updated Tuesday at 8:30 PM 3647 Posts Group: Members Member Since: March 9th 2006 Location: bridgeport, new york, USA Current Sled: 1991 indymod/2005 xcsp600 2008-2009 Miles: 2900 2009-2010 Miles: grass!?
	your talking about an ez out right? that would probbably work and yes it should just unscrew 1990 indy trail bored.20over, ported and polished, cluched and geared, chaincase/brakes/jackshaft from 93 xlt, headlight cover, teather, some custom painting, black skid plate, blue running board trim, fox shocks, blue/gray powermadd handguards, 2 in powermadd riser, fly bars/barpad,blue leds(underglow),1 in lug track, teather mount from a 96xcr440,blue guage bulbs, blue c&as, xtra 10 rear, and edge seat and tank. 2005 xcsp 600,chrome windy,stripped decals,3.5 inch rox riser,white powermadd handguards,white c&a ultra 3 skis 6in shapers,camoplast cobra,slp can,fly bars/barpad,xeon headlight bulbs,rsi barhooks,odi grips,light blue clutch spring,slp vents,black headlight cover,billet wheels,rydefx clicker, Rating: 0 Quick Edit Full Edit

	August 23rd 2009 at 12:11 AM Post #5
	Craig_Polaris Junior Member 147 Posts Group: Members Member Since: November 11th 2008 Location: Derry, New Hampshire, USA Current Sled: 2002 Edge X 800
	ya an ez out. will it matter if i scratch it up the inside of the crank a lil by doing that 2002 Edge x 800; Recently swallowed a valve so, New wiseco pistons, rings, pins, circlips, renikisil cylinders, and updated lower end bearings. - Slp single Pipe and Can - Vforce3 Reeds - Slp air horn and gutted box - 140/310 Slp primary spring Rating: 0 Quick Edit Full Edit

	August 23rd 2009 at 8:26 AM Post #6
	Riley P.J.H. Racing Speed Consultant 1608 Posts Group: Members Member Since: October 16th 2001 Location: Coon Rapids, MN, USA
	I would split the case and bring the top half in to a machine shop and see what they can do. PJH Racing Rating: 0 Quick Edit Full Edit

	August 23rd 2009 at 6:34 PM Post #7
	TeamNFG Advanced Member 1458 Posts Group: Members Member Since: February 22nd 2006 Location: SomeSno, Ab., Canada
	You will want to split the cases, due to using an easy out, you will want to avoid getting any drilling crap into the bottom end. Also is 30 ft lbs the tourqe spec! seems high to me Fix it till its broke! Rating: 0 Quick Edit Full Edit

	August 23rd 2009 at 6:53 PM Post #8
	Pharotek Junior Member Pharotek is getting tired of his green lawn! Let it snow already! Updated Tuesday at 10:29 PM 213 Posts Group: Members Member Since: July 6th 2009 Location: corning, new york, USA Current Sled: 01 600 xcsp edgex 2008-2009 Miles: 447
	mine where 26-32FT it states it in the service book provieded by ugly-poo-kid! 98 Indy 500-Wife's 01 XCsp 600 edgex-current 96 formula lll 600-sold after droping a cylinder for the second time 95 Indy 440 50yrs anniversary-sold(miss this sled) 74 Polaris Electra 340-sold 69 Massey Ferguson Ski Whiz 440-sold(got for bday when i was 14) Rating: 0 Quick Edit Full Edit

	August 23rd 2009 at 10:37 PM  [ Modified August 23rd 2009 at 10:39 PM ] Post #9
	Craig_Polaris Junior Member 147 Posts Group: Members Member Since: November 11th 2008 Location: Derry, New Hampshire, USA Current Sled: 2002 Edge X 800
	well none of the shavings are going actually into the crankcase. And no need to bring it to a machine shop because its just a stud. So if i do split the case i will be able to just replace it. Its just a pain to have to split it. 2002 Edge x 800; Recently swallowed a valve so, New wiseco pistons, rings, pins, circlips, renikisil cylinders, and updated lower end bearings. - Slp single Pipe and Can - Vforce3 Reeds - Slp air horn and gutted box - 140/310 Slp primary spring Rating: 0 Quick Edit Full Edit

	August 24th 2009 at 7:10 AM Post #10
	Ugly_old_Poo_kid techno-bumpkin 1079 Posts Group: Members Member Since: March 18th 2007 Location: Walworth, NY, USA Current Sled: 05 Edge & Frankenstorm II 2008-2009 Miles: 165
	Take a couple rags and stuff them down into the bottom of the crankcase and tape over them with some painters masking tape. Then drill and easy-out without worry. Once you're done wipe all the chips off the tape, then remove the tape, and rags, and there'll be no chips in the bottom of the crankcase. 95 - Storm 800 - Modded - AKA: FrankenStorm - Totalled near 100mph at Tug Hill! 96 - XLT/SP with Storm 800 trip/trip and now EFI - FrankenStorm II lives... 95 - RXL -- Sale Pending -- 05 - Edge 800 long track - Stayin' stock for now.. --------------------------------------------- It made me more compassionate, more empathetic, more nurturing... I FEEL LIKE I'M TRAPPED IN MY OWN WORST NIGHTMARE!!! Rating: 0 Quick Edit Full Edit

	August 24th 2009 at 10:11 PM  [ Modified August 24th 2009 at 10:13 PM ] Post #11
	Pharotek Junior Member Pharotek is getting tired of his green lawn! Let it snow already! Updated Tuesday at 10:29 PM 213 Posts Group: Members Member Since: July 6th 2009 Location: corning, new york, USA Current Sled: 01 600 xcsp edgex 2008-2009 Miles: 447
	Quote originally posted by Ugly_old_Poo_kid Take a couple rags and stuff them down into the bottom of the crankcase and tape over them with some painters masking tape. Then drill and easy-out without worry. Once you're done wipe all the chips off the tape, then remove the tape, and rags, and there'll be no chips in the bottom of the crankcase. I agree, this is what i do when i change my cylinder base gaskets to prevent the small piece's of material from going into the crankcase. I Also have my small shop vac running and move the hose to the area I'm working on/cleaning off to suck up any thing that could end up where i don't want it too. 98 Indy 500-Wife's 01 XCsp 600 edgex-current 96 formula lll 600-sold after droping a cylinder for the second time 95 Indy 440 50yrs anniversary-sold(miss this sled) 74 Polaris Electra 340-sold 69 Massey Ferguson Ski Whiz 440-sold(got for bday when i was 14) Rating: 0 Quick Edit Full Edit

	August 25th 2009 at 12:22 AM Post #12
	Craig_Polaris Junior Member 147 Posts Group: Members Member Since: November 11th 2008 Location: Derry, New Hampshire, USA Current Sled: 2002 Edge X 800
	Ya i would but i ended up breaking the easy out bit in there. So i'm taking the engine out and splitting the case. I'm going to have new crank bearings put in. 2002 Edge x 800; Recently swallowed a valve so, New wiseco pistons, rings, pins, circlips, renikisil cylinders, and updated lower end bearings. - Slp single Pipe and Can - Vforce3 Reeds - Slp air horn and gutted box - 140/310 Slp primary spring Rating: 0 Quick Edit Full Edit

	August 25th 2009 at 7:54 AM Post #13
	Riley P.J.H. Racing Speed Consultant 1608 Posts Group: Members Member Since: October 16th 2001 Location: Coon Rapids, MN, USA
	Good luck getting it out now with the easy out busted off in there. PJH Racing Rating: 0 Quick Edit Full Edit
